This is a pilot kick type stainless solenoid valve that can operate from 0 MPa and has a large flow rate structure.
| Fluid | (1)Water, Oil, Air, Gas (2)Steam(3)Hot Water |
|---|---|
| Temperature | (1)60℃ (2)180℃(3)200℃ |
| Pressure | MAX 0.5-1.6MPa |
| Size | 10-25A |
| PowerSource | 100,110,120,200,220,240 volts AC (50/60Hz) , DC |
| Operation | Normally Close |
| Model No | Connection | Orifice Φ [mm] |
Cv Value |
Weight (kg) |
||
|---|---|---|---|---|---|---|
| Size | Port | Type | ||||
| ME6-SSP-10 | 3/8 | 2WAY | Rc | 10 | 1.3 | 0.7 |
| ME6-SSP-15 | 1/2 | 13.8 | 3.0 | 1.0 | ||
| ME6-SSP-20 | 3/4 | 19 | 4.9 | 1.6 | ||
| ME6-SSP-25 | 1 | 25 | 6.2 | 1.9 | ||
| ME6-SSP-15WHK | 1/2 | 13.8 | 3.0 | 1.5 | ||
| ME6-SSP- 20WHK | 3/4 | 19 | 4.9 | 2.0 | ||
| ME6-SSP-25WHK | 1 | 25 | 6.2 | 2.2 | ||
| Fluid | Pressure(MPa) | Temperature(℃) |
|---|---|---|
| Water | 0-0.8 | 60 |
| Oil | 0-0.7 | |
| Air, Gas | 0-0.5 | |
| Steam | 0-1 | 180 |
| Hot Water | 0-1.6 | 200 |

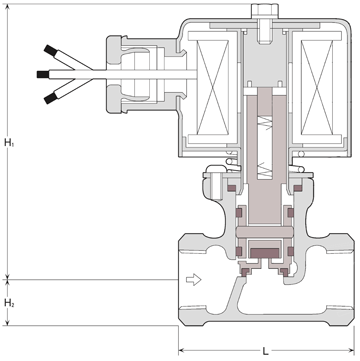

| Model (Size) |
Dimension (mm) | ||
|---|---|---|---|
| L | H1 | H2 | |
| ME6-SSP-10 (3/8) | 53 | 84 | 13 |
| ME6-SSP-15 (1/2) | 63 | 94 | 17 |
| ME6-SSP-20 (3/4) | 74 | 126 | 19 |
| ME6-SSP-25 (1) | 88 | 126 | 24 |
| ME6-SSP-15WHK (1/2) | 63 | 94 | 18 |
| ME6-SSP-20WHK (3/4) | 74 | 126 | 20 |
| ME6-SSP-25WHK (1) | 88 | 126 | 25 |
| Installation | A Coil Vertical plus minus at an angle of 90° |
|---|---|
| Ambient Temp. | 0-50℃ |
| Humidity | RH90％ or less |
| Fluid Viscosity | 50mm2/s(50cst) |
| Option | Drip-proof Type, Terminal Box |
