High Pressure Solenoid Valve | 20MpaSSAP series

  • Direct-operated and high pressure 20MPa solenoid valve.
  • Suitable for high pressure cleaning equipment and testing machine.

This is a plastic solenoid valve that can be used to control corrosive fluids. It comes in various connection types including Rc, flange, union and sleeve connections. Variations of this valve are offered as the SR/SR-T series.

Fluid Water, Oil, Air, Gas
Temperature MAX70C
Pressure 0.2-20MPa
Size 8-25A
PowerSource 100,110,120,200,220,240 volts AC (50/60Hz) , DC
Operation Normally Close

全て開く

Valve Specification

Model No Connection Orifice
Φ
(mm)

Pressure
(MPa)

Cv
Value
Weight
(kg)
Size Port Type

SSPA-8

1/4 2WAY Rc 8 0.2~20 1.0 5.0

SSPA-12

3/8

SSPA-15

1/2 13 2.6

SSPA-20

3/4

SSPA-25

1 20 4.3

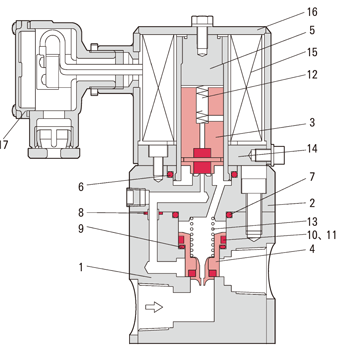

Main Parts List

No Name of part Material
1 Body SUS304
2 Valve Bonnet SUS304
3 Plunger SUS410+PTFE
4 Main Valve Ass’y SUS410+PTFE
5 Packless Ass’y SUS410+SUS304
6 Packless Packing FKM
7 Body Packing FKM
8 By-pass Tube Packing FKM
9 Main Valve Packing FKM
10 Seal Ring PTFE
11 Tension Ring SUS304
12 Plunger Spring SUS304
13 Main Valve Spring SUS304
14 Set Plate S15C
15 Coil PEW
16 Coil Bonnet SPC+Coating
17 Terminal Box that fits inside Rectifier Assembly

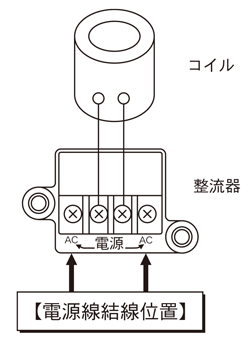

Wiring Diagram

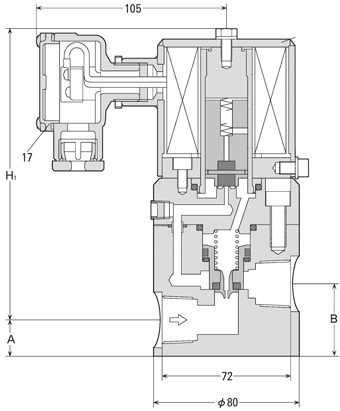

Dimensions

Model No
(Size)

Dimensions
mm
L H1 H2
SSAP-8 (1/4) 153 15 28
SSAP-12 (3/8)
SSAP-15 (1/2) 160 20 40
SSAP-20 (3/4)
SSAP-25 (1) 170 23

Other Specifications・Options

Installation A Coil Vertical plus minus at an angle of 90 degree
Ambient Temp. 0-50C
Humidity RH90% or less
Fluid Viscosity 50mm2/s(50cst)
Option Drip-proof Type
Body Materials : SUS304, Other above Power Source
Accessories Terminal Box that fits inside Rectifier
