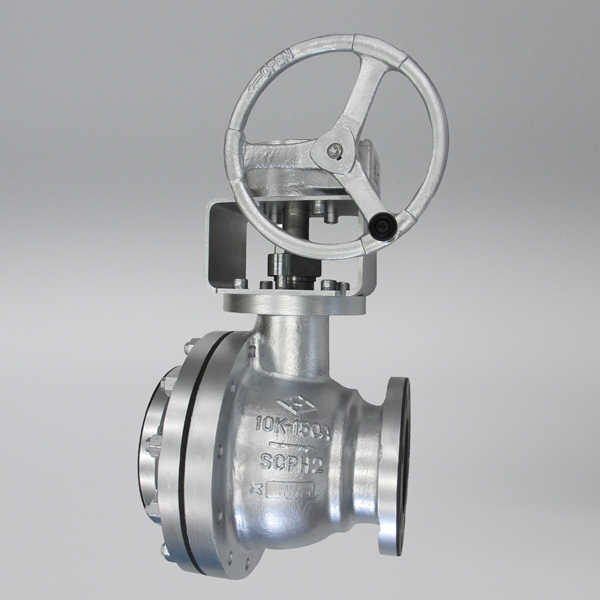

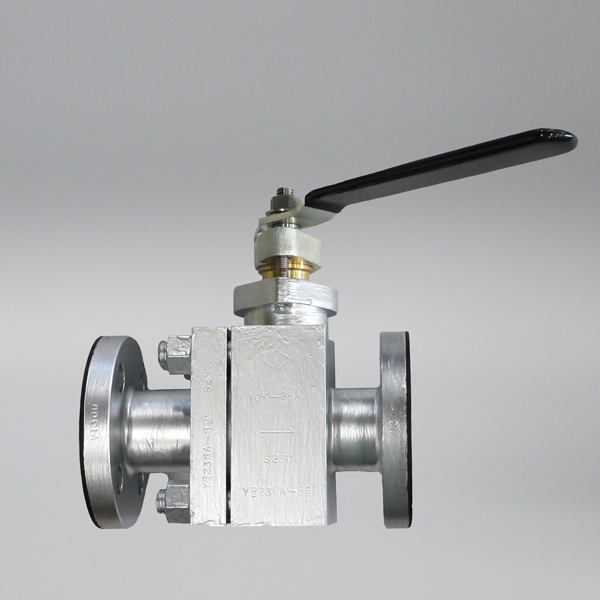

Rubber lining ball valve for sea waterHRLB series

  • A ball valve which made hard rubber lining at the part where liquid comes in contact.
  • Ideal for seawater / corrosive fluids.
  • Pneumatically operated, electric operated type is also possible.

Fluid Water,Sea water,Special liquid
Pressure 1.37MPa
Temperature 66℃
Size 1″- 10″ (25A-250A)
Connection JIS10K,ASME150LB Flange
Body FCD450 (S25C,SCPH2 )
Country Made in Japan
Option Pneumatically operated, Electric operated

This product is a general purpose product improved for general industrial use based on nuclear power.

全て開く

Specifications

Valve Specification

Model No CONNECTION Structure Dementions(mm) Rubber lining
thickness
Size Type Standard Φd L H A
BACR25A
CONNECTION - Size
1
CONNECTION - Type
Flange
CONNECTION - Standard
JIS10K
or
ASME150LB
Structure
2WAY
Dementions(mm) - Φd
25
Dementions(mm) - L
190
Dementions(mm) - H
170
Dementions(mm) - A
180
Rubber lining thickness
MIN 3mm
BACR40A
CONNECTION - Size
1 1/2
CONNECTION - Type
Flange
CONNECTION - Standard
JIS10K or ASME150LB
Structure
2WAY
Dementions(mm) - Φd
38
Dementions(mm) - L
190
Dementions(mm) - H
198
Dementions(mm) - A
220
Rubber lining thickness
MIN 3mm
BACR50A
CONNECTION - Size
2
CONNECTION - Type
Flange
CONNECTION - Standard
JIS10K or ASME150LB
Structure
2WAY
Dementions(mm) - Φd
50
Dementions(mm) - L
210
Dementions(mm) - H
203
Dementions(mm) - A
220
Rubber lining thickness
MIN 3mm
BACR65A
CONNECTION - Size
2 1/2
CONNECTION - Type
Flange
CONNECTION - Standard
JIS10K or ASME150LB
Structure
2WAY
Dementions(mm) - Φd
64
Dementions(mm) - L
225
Dementions(mm) - H
273
Dementions(mm) - A
300
Rubber lining thickness
MIN 3mm
BACR80A
CONNECTION - Size
3
CONNECTION - Type
Flange
CONNECTION - Standard
JIS10K or ASME150LB
Structure
2WAY
Dementions(mm) - Φd
76
Dementions(mm) - L
250
Dementions(mm) - H
277
Dementions(mm) - A
300
Rubber lining thickness
MIN 3mm
BACR100A
CONNECTION - Size
4
CONNECTION - Type
Flange
CONNECTION - Standard
JIS10K or ASME150LB
Structure
2WAY
Dementions(mm) - Φd
102
Dementions(mm) - L
290
Dementions(mm) - H
353
Dementions(mm) - A
500
Rubber lining thickness
MIN 3mm

There are products up to 10″ size. Please inquire details.

Main Parts List

Model No Size Dementions(mm)
Φd L H A
BACR25A
Size
1
Dementions(mm) - Φd
25
Dementions(mm) - L
190
Dementions(mm) - H
170
Dementions(mm) - A
180
BACR40A
Size
1 1/2
Dementions(mm) - Φd
38
Dementions(mm) - L
190
Dementions(mm) - H
198
Dementions(mm) - A
220
BACR50A
Size
2
Dementions(mm) - Φd
50
Dementions(mm) - L
210
Dementions(mm) - H
203
Dementions(mm) - A
220
BACR65A
Size
2 1/2
Dementions(mm) - Φd
64
Dementions(mm) - L
225
Dementions(mm) - H
273
Dementions(mm) - A
300
BACR80A
Size
3
Dementions(mm) - Φd
76
Dementions(mm) - L
250
Dementions(mm) - H
277
Dementions(mm) - A
300
BACR100A
Size
4
Dementions(mm) - Φd
102
Dementions(mm) - L
290
Dementions(mm) - H
353
Dementions(mm) - A
500

Dimensions

No. Part Name Material
1
Part Name
Body
Material
FCD450
Hard rubber lining
2
Part Name
Body
Material
FCD450 Hard rubber lining
3
Part Name
Ball
Material
SUS316L
4
Part Name
Ball Seat
Material
High molecular
weight polyethylene
5
Part Name
Stem
Material
SUS316L
6
Part Name
O-ring
Material
EPDM
7
Part Name
Bolt
Material
SNB7
8
Part Name
Nut
Material
S45C
9
Part Name
Packing
Material
Non-asbestos

Other Specifications・Options

Option 1)Body material: S25C, SCPH2 can also be supported.
