1) above0.05 – 0.25MPa or less 2) above0.25 – 0.45MPa or less 3) above0.45 – 0.7 MPa or less 4) above0.7 – 1.6MPa or less (H)
1) above0.05 – 0.2MPa or less 2) above0.2 – 0.5MPa or less 3) above0.5 – 0.7MPa or less 4) above 0.7 – 1.6MPa or less (H)
Pressure Control Range
above0.05 – 0.7 MPa or less
above0.7 – 1.6 MPa or less
Min pressure defference
0.05MPa (the secondary pressure is 70% or less of the primary pressure)
Allowable leak rate
Less than (valve size / 25 * 200) cc/min
Max pressure reduction ratio
FC20 (PA-R,PA-OR) / SCPH (PA-RH,PAORH)

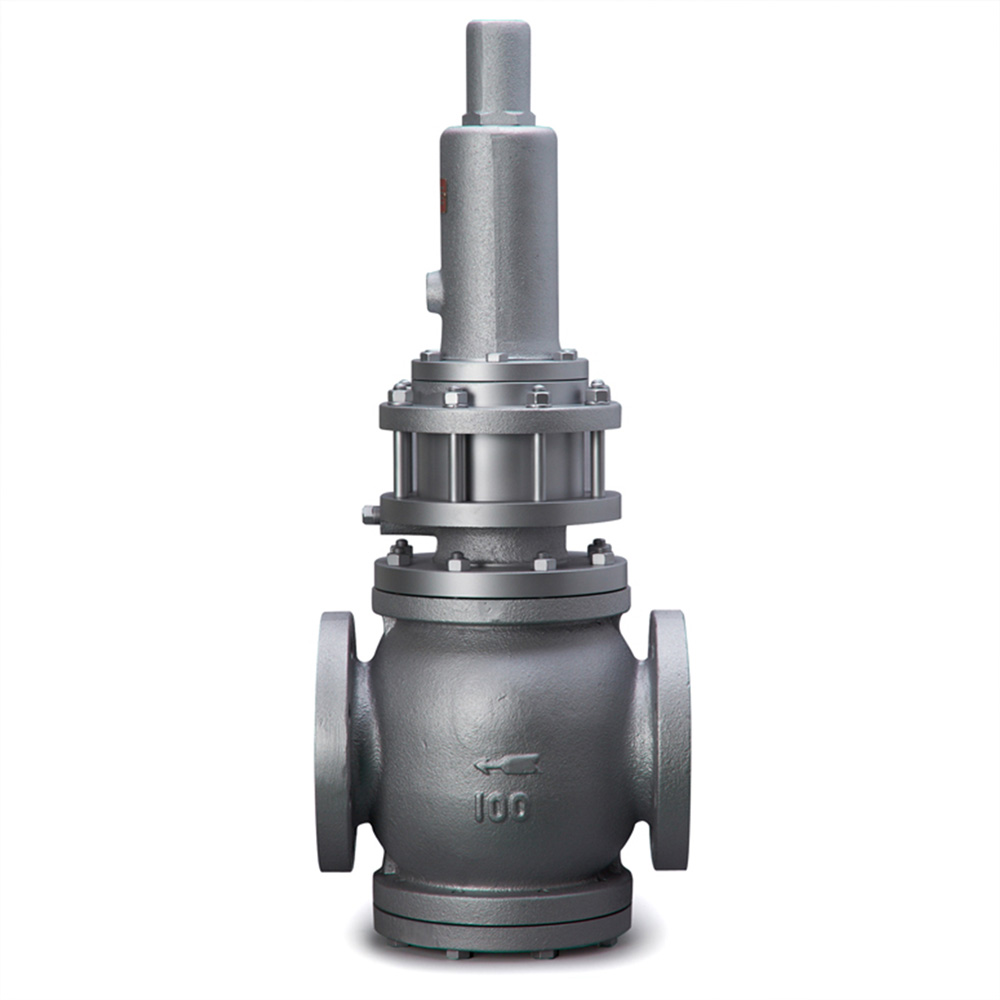

What is a Pressure reducing valve
・The pressure reducing valve is a valve that works to reduce high pressure fluid to an optimal pressure. ・In other words, the throttling effect when the high pressure fluid passes through the valve causes a pressure loss and reduces the pressure. ・The spring inside the valve creates a flow path area according to the differential pressure, making the flow constant.
About use of pressure reducing valve
・Pressure reducing valve is used when the supply pressure is too high for the purpose of use ・It is also used as a measure to reduce water hammer.
Precautions for pressure reducing valve
・Lubricating grease is used for the O-ring of the piston part. It can not be used in places that require no oil. ・The detection tube length for external detection (PA-OR PA-ORH) should be approximately 1 m. We also recommend using a speed controller or needle valve
Frequently Asked Questions
Can I buy your product from my country?
It’s possible for us to sell every area all over the world. If there is direct-shop or our agency directly in your area, we let you know it.
What can I select for payment options?
You can choose either T/T or L/C.T/T is an abbreviation of “Telegraphic Transfer”. Please send money to our bank account. L/C is an abbreviation of “Letter Of Credit”. It’s the means of settlement for trading that should be pledged as a collateral between our company and your bank as payment promise.
Can I buy the valves of other company by you?
You can buy Japanese valve product of other manufactures. You can buy the valves for example, Solenoid valves, Air-operated valves, Motorized valves, Electric flow control valves, Constant flow valves, Check valves, Manual valves, And other Japanese valves we can select. We can’t sell you some product that we don’t have the stock or that we can’t select the spec for special-spec product, please accept it beforehand. (If you may select the model number by your own and we do not have to decide or select it, we can sell you the product.) We can sell you any valve product of Japanese manufacture.
Available for EMS and FedEX and other shipping companies with which we have been trading. Also available the options for airmail or surface mail depending on the quantity and weight of the package. If you want, you can choose delivery traders for shipping.
How long will it take for a shipping date?
If we have the stock, it will be delivered in 3 to 10 days by EMS. Order production will be delivered in 45 to 60 days depending on the quantity and weight of the products.
International Sales available | Waiting for Inquiry
Keihin Co., Ltd.’s valve products (all products listed on the website or catalogue) can be purchased anywhere around the world from one pcs! (→Learn More)
