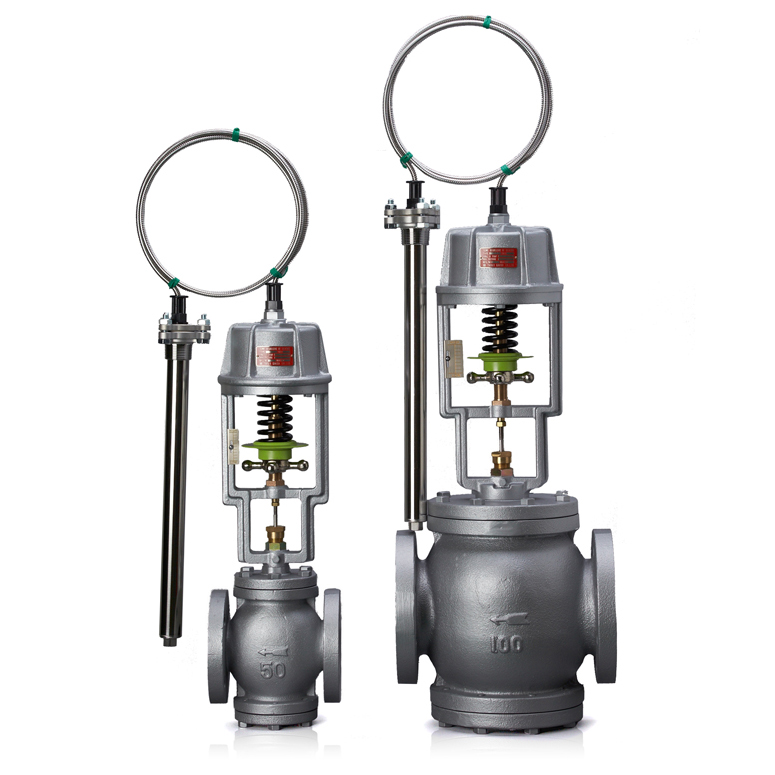

Automatic temperature control valve Bellows SR FR SS FS

Model	SR FR
Fluid	Water Steam
Temperature	Max 180℃ Control Range (40℃-120℃ : +/-20%)
Pressure	0.2-0.7MPa
Size	1/2″ – 6″
Body	BC6(SR SS),FC20(FR FS)
Manufacturer	TAISEI KOGYO CO., LTD.
Origin	Japan

Valve Specification

Model	Connection		Pressure (MPa)	CV Value	Weight kg
Model	Size(inch)	Type	Pressure (MPa)	CV Value	Weight kg
SR 1/2	1/2	Rc	0.7	2
SR 3/4	3/4			2
SR 1	1			4
SR 1 1/4	1 1/4			7
SR 1 1/2	1 1/2			10
FR 1/2	1/2	JIS 10K Flange	0.7	2
FR 3/4	3/4			2
FR 1	1			4
FR 1 1/4	1 1/4			7
FR 1 1/2	1 1/2			10
FR 2	2			14
FR 2 1/2	2 1/2		0.5	21
FR 3	3		0.4	27
FR 4	4		0.4	42
FR 5	5		0.3	72
FR 6	6		0.2	94

Other Specifications・Options

Leak rate	Allowable leak rate of Automatic temperature control valve When the valve is closed, the allowable leak amount is 0.5% or less of the cv value.
Capillary	Capillary of Automatic temperature control valve Length of Capillary valve size : 1/2″ – 3″ = 2m valve size : 4″ – 6″ = 3m *The maximum capillary length can be up to 10m.

What is a automatic temperature control valve

automatic temperature control valve

1.The automatic temperature control valve is a self-powered automatic temperature control valve that does not require air pressure or electricity.
2.The temperature is detected by a thermal cylinder inserted into the temperature detection unit. Temperature is detected by the pressure at which the liquid in the thermal cylinder evaporates.
3.The pressure at the time of evaporation of the filling fluid is transmitted to the bellows inside the valve, and the bellows expand and contract.
4.This makes it possible to adjust the temperature automatically by moving the internal valve back and forth.
