Emergency shut off motorized Ball ValveKB1-PV series

  • Designed for use in corrosive fluid.
  • A spring return type that works as an emergency shutoff valve in the event of a power outage.
  • Features a 2-wire power source that enables replacement of a solenoid valve without rewiring.

This valve minimizes water hammer with a closing time of 2.5 seconds.

Fluid Special Liquid
Temperature 50C
Pressure  1MPa
Size 15-25A (Rc・JIS10KFF)
Power Source AC100,200V (50/60Hz)
Operation spring return type (emergency shutoff)

全て開く

Valve Specification

Model No Connection Pressure Range[MPa] Cv Value Open-Close Time (second)
Size Port Type Operating Pressure Close off Rating
KB1-PVP-AS15WTDMJ 1/2 2WAY Rc 1.0MPa 1.0MPa 14 2.5
KB1-PVP-AS20WTDMJ 3/4 29
KB1-PVP-AS25WTDMJ 1 47
KB1-PVF-AS15WTDMJ 1/2 JIS10K FF 14
KB1-PVF-AS20WTDMJ 3/4 29
KB1-PVF-AS25WTDMJ 1 47

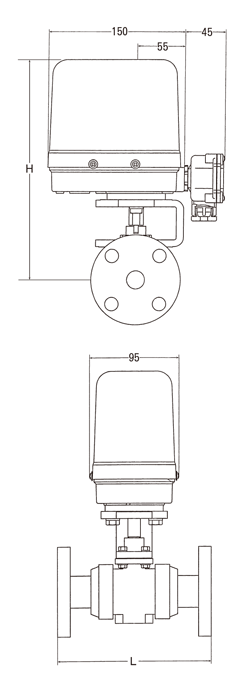

Dimensions

Model No (Size) Dimension (mm)
φd L H
KB1-PVP-AS15WTDMJ (1/2) 15.0φ 102.0 240.0
KB1-PVP-AS20WTDMJ (3/4) 20.0φ 120.0 250.0
KB1-PVP-AS25WTDMJ (1) 25.0φ 131.0 255.0
KB1-PVF-AS15WTDMJ (1/2) 15.0φ 143.0 240.0
KB1-PVF-AS20WTDMJ (3/4) 20.0φ 172.0 250.0
KB1-PVF-AS25WTDMJ (1) 25.0φ 187.0 255.0
