| Fluid | Water |
|---|---|
| Pressure | 60MPa,80MPa |
| Temperature | 40℃ |
| Size | 8A |
| Air Pressure | 0.5-0.7MPa |
| Acting | Air in Open Air in Close |
| Model No | Connection | Port | Pressure (Fluid) |
CV Value |
Pressure (Air) |
Weight (kg) |
|
|---|---|---|---|---|---|---|---|
| Size | Type | ||||||
| P2U-08S-60 | 1/4 | Rc | 2WAY | 0〜60MPa | 0.2 | 0.5〜0.7MPa | 4.1 |
| P2U-08S-80 | 1/4 | Rc | 2WAY | 0〜80MPa | 0.2 | 0.5〜0.7MPa | 4.5 |

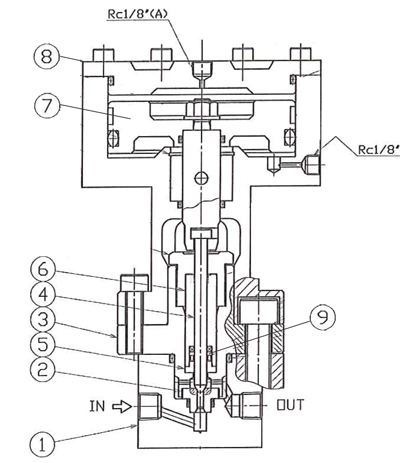

| No | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | SUS304 |
| 2 | SEAT RING | SPECIAL ALLOY |
| 3 | BONNET | SUS304 |
| 4 | STEM | SPECIAL ALLOY |
| 5 | COLLAR | SUS304 |
| 6 | STEM GUIDE | CAC406 |
| 7 | PISTON | A5056 |
| 8 | TOP COVER | A5056 |
| 9 | PACKING | SPECIAL RESIN |

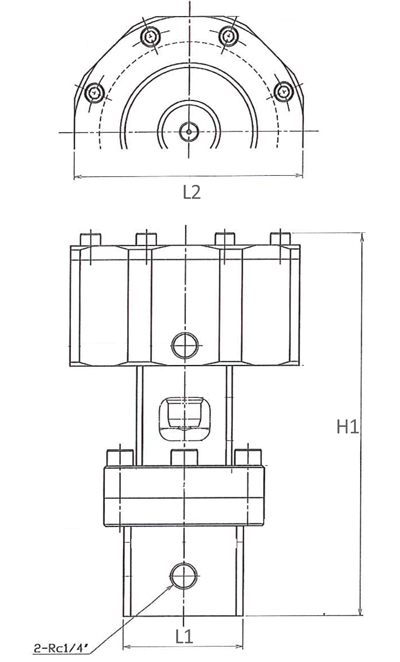

| Model No | Size | Dimension | ||
|---|---|---|---|---|
| L1 | L2 | H1 | ||
| P2U-08S-60 | 1/4 | 3 | 115 | 191 |
| P2U-08S-80 | 1/4 | 3 | 135 | 191 |
| Installation | Horizontal |
|---|---|
| Others | With support hole under the body |
