This valve can be used under high-pressure conditions that require high reliability, and has been used for many years around the world.
| Fluid | Water, Oil, Air, Gas |
|---|---|
| Temperature | 70℃ |
| Pressure | MAX 20MPa |
| Size | 8-25A |
| PowerSource | 100,110,120,200,220,240 volts AC (50/60Hz) , DC |
| Operation | Normally Close |
| Model No | Connection | Orifice Φ(mm) |
Pressure (MPa) |
Cv Value |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|
| Size | Port | Type | |||||
| SSPD-8 | 1/4 | 2WAY | Rc | 2 | 0-20MPa | 0.12 | 4.0 |
| SSPD-12 | 3/8 | ||||||
| SSPD-15 | 1/2 | ||||||
| SSPD-20 | 3/4 | 4.5 | |||||
| SSPD-25 | 1 | ||||||

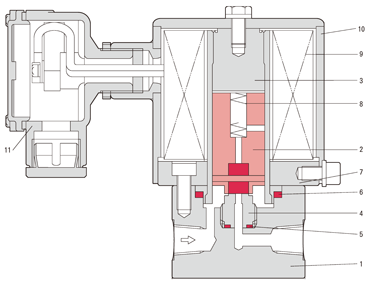

| No | Name of Parts | Materials |
|---|---|---|
| 1 | Body | SUS304 |
| 2 | Plunger | SUS410＋PTFE |
| 3 | Packless Ass’y | SUS410＋SUS304 |
| 4 | By-pass Seat | SUS304 |
| 5 | By-pass Seat Packing | FKM |
| 6 | Packless Packing | FKM |
| 7 | Set Plate | S15C |
| 8 | Plunger Spring | SUS304 |
| 9 | Coil | PEW |
| 10 | Coil Bonnet | SPC＋Coating |
| 11 | Terminal Box that fits inside Rectifier | Assembly |
| Model No (Size) |

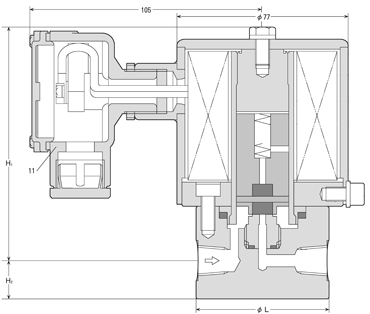

Dimensions (mm) |
||
|---|---|---|---|
| L | H1 | H2 | |
| SSPD-8 (1/4) | 60 | 109 | 16 |
| SSPD-12 (3/8) | 108 | 17 | |
| SSPD-15 (1/2) | 109 | 21 | |
| SSPD-20 (3/4) | 70 | 113 | 22 |
| SSPD-25 (1) | 114 | 26 | |
| Installation | A Coil Vertical plus minus at an angle of 90 degree |
|---|---|
| Ambient Temp. | 0-50℃ |
| Humidity | RH90％ or less |
| Fluid Viscosity | 50mm2/s(50cst) |
| Option | Drip-proof Type Body Materials : SUS304, Other above Power Source |
| Accessories | Terminal Box that fits inside Rectifier |
