This is a pilot type solenoid valve made of CAC406. Although a differential pressure of 0.03 MPa is required, it features a large flow rate structure.
| Fluid | (1)Water, Oil, Air, Gas (2)Steam |
|---|---|
| Temperature | (1)60℃ (2)200℃ |
| Pressure | 0.03-1MPa |
| Size | 10-50A (Rc)・32-50A (JIS10KFF) |
| PowerSource | 100,110,120,200,220,240 volts AC (50/60Hz),DC |
| Operation | Normally Open, Normally Close |
| Model No | Connection | Orifice Φ(mm) |
Cv Value |
Weight (kg) |
||
|---|---|---|---|---|---|---|
| Size | Port | Type | ||||
| TEN-10 | 3/8 | 2WAY | Rc | 15 | 3.2 | 1.1 |
| TEN-15 | 1/2 | 4.1 | ||||
| TEN-20 | 3/4 | 20 | 7.4 | 1.7 | ||
| TEN-25 | 1 | 25 | 12.0 | 2.2 | ||
| TEN-32 | 1 1/4 | 32 | 17.5 | 2.8 | ||
| TEN-40 | 1 1/2 | 40 | 22.4 | 3.4 | ||
| TEN-50 | 2 | 50 | 37.0 | 4.4 | ||
| TENF-32 | 1 1/4 | JIS10K FF | 32 | 17.5 | 6.8 | |
| TENF-40 | 1 1/2 | 40 | 22.4 | 7.6 | ||
| TENF-50 | 2 | 50 | 37.0 | 9.7 | ||
| Fluid | Pressure[MPa] | Temp[℃] |
|---|---|---|
| Water Air Gas | 0.03-1 | 60 |
| Oil | 0.03-0.7 | |
| Steam | 0.03-1 | 200 |
*Minimum differential pressure is 0.03MPa.

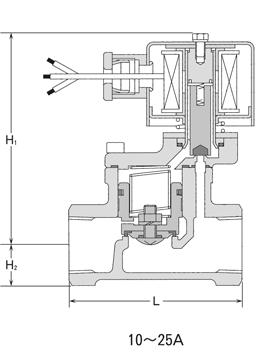

| Model No (Size) | Dimension [mm] | ||
|---|---|---|---|
| L | H1 | H2 | |
| TEN-10 (3/8) | 70 | 105 | 17 |
| TEN-15 (1/2) | |||
| TEN-20 (3/4) | 80 | 120 | 19 |
| TEN-25 (1) | 100 | 130 | 24 |
| TEN-32 (1 1/4) | 110 | 150 | 28 |
| TEN-40 (1 1/2) | 120 | 155 | 31 |
| TEN-50 (2) | 140 | 165 | 38 |
| TENF-32 (1 1/4) | 150 | 150 | 68 |
| TENF-40 (1 1/2) | 160 | 155 | 70 |
| TENF-50 (2) | 170 | 165 | 78 |
| Installation | A Coil Vertical plus minus at an angle of 90 degree |
|---|---|
| Ambient Temp. | 0-50℃ |
| Humidity | RH90％ or less |
| Fluid Viscosity | 50mm2/s(50cst) |
| Option | Drip-proof Type |
