This compact, direct operating solenoid valve achieves excellent shutoff performance and high flow rates at low pressure ranges of up to 0.05 MPa and 0.1 MPa.
| Fluid | (1)Water, Oil, Air, Gas (2)Steam |
|---|---|
| Temperature | (1)60℃ (2)200℃ |
| Pressure | MAX 0.05,0.1ＭＰａ |
| Size | 10-50A |
| PowerSource | 100,110,120,200,220,240 volts AC (50/60Hz),DC |
| Operation | Normally Open, Normally Close |
| Model No | Connection |
Orrifice |
Pressure (MPa) |
Cv Value | Weight (kg) | ||
|---|---|---|---|---|---|---|---|
| Size | Port | Type | |||||
| VSD-12 | 3/8 | 2WAY | Rc | 10 | 0~0.05 | 2.5 | 1.4 |
| VSD-15 | 1/2 | 15 | 3.4 | 1.7 | |||
| VSD-20 | 3/4 | 17 | 1.8 | ||||
| VSD-25 | 1 | 20 | 5.1 | 1.9 | |||
| VSD-35D | 1 1/4 | 30 | 9.8 | 3.0 | |||
| VSD-40D | 1 1/2 | 3.5 | |||||
| VSD-50D | 2 | 4.5 | |||||
| VSDF-35D | 1 1/4 | JIS10K FF | 6.3 | ||||
| VSDF-40D | 1 1/2 | 6.8 | |||||
| VSDF-50D | 2 | 8.2 | |||||
| VSD-12(H) | 3/8 | Rc | 7 | 0~0.10 | 1.5 | 1.4 | |
| VSD-15(H) | 1/2 | 10 | 1.6 | 1.7 | |||
| VSD-20(H) | 3/4 | 1.6 | 1.8 | ||||
| VSD-25(H) | 1 | 15 | 3.8 | 1.9 | |||
| VSD-35D(H) | 1 1/4 | 20 | 7 | 3.0 | |||
| VSD-40D(H) | 1 1/2 | 3.5 | |||||
| VSD-50D(H) | 2 | 4.5 | |||||
| VSDF-35D(H) | 1 1/4 | JIS10K FF | 6.3 | ||||
| VSDF-40D(H) | 1 1/2 | 6.8 | |||||
| VSDF-50D(H) | 2 | 8.2 | |||||

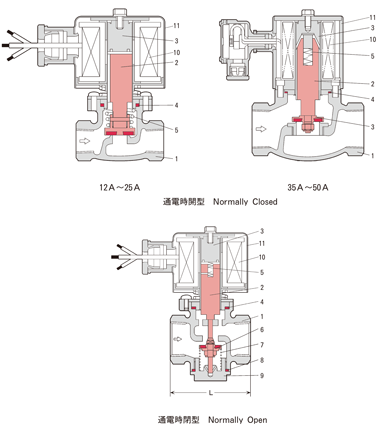

| Normally Close | ||
|---|---|---|
| No | Name of Parts | Material(60℃|200℃) |
| 1 | Body | CAC406 |
| 2 | Plunger | (SUS410＋FKM l SUS410＋PTFE)* |
| 3 | Packless Ass’y | SUS410＋SUS304 |
| 4 | Packless Packing | (NBR l PTFE) |
| 5 | Plunger Spring | SUS304 |
| 10 | Coil | PEW |
| 11 | Coil Bonnet | SPC＋Coating |
＊ 60℃ Type : SUS304＋C3604＋FKM. 200℃ Type : SUS304＋PTFE.
| Installation | A Coil Vertical plus minus at an angle of 90 degree |
|---|---|
| Ambient Temp. | 0-50℃ |
| Humidity | RH90％ or less |
| Fluid Viscosity | 50mm2/s(50cst) |
| Option | Drip-proof Type, Explosion-Proof(d2G3), |
