Solenoid ValveVSPD series

  • Direct-operated type electromagnetic valve (solenoid valve) .
  • Comes in low-pressure (0.5-1 MPa), medium-pressure (2.5-3.5 MPa) and high-pressure (5 MPa) variations.

Fluid (1)Water, Oil, Air, Gas (2)Steam
Temperature 70℃
Pressure 0.5-5 MPa
Size 10-15A
PowerSource 100,110,120,200,220,240 volts AC (50/60Hz) , DC
Operation Normally Close , Normally Open
VSPD series
Contact Us
VSPD series
Catalog Download

International Sales available | Waiting for Inquiry!

全て開く

Valve Specification

Model No connection Orifice
Φ(mm)		 Pressure
(MPa)		 CV
Value		 Weight
(kg)
size Port connection
VSPD-1540-□□ 3/8 or 1/2 2WAY Rc 4.0 0~0.5 0.41 0.95
VSPD-1530-□□ 3/8 or 1/2 3.0 0~1.0 0.31
VSPD-1520-□□ 3/8 or 1/2 2.0 0~2.5※ 0.15
VSPD-2060-□□ 3/8 or 1/2 6.0 0~0.5 0.58 1.4
VSPD-2050-□□ 3/8 or 1/2 5.0 0~0.7 0.53
VSPD-2040-□□ 3/8 or 1/2 4.0 0~1.0 0.41
VSPD-2030-□□ 3/8 or 1/2 3.0 0~2.5※ 0.31
VSPD-2025-□□ 3/8 or 1/2 2.5 0~3.5 0.22
VSPD-2020-□□ 3/8 or 1/2 2.0 0~5.0 0.15

※ (1) In the case for using steam the pressure range is 0-1.6MPa.
※ (2)In the case of  Fluid (water oil air gas) , high temperature (over 61℃) and normally open type use the pressure range is 0-2MPa.

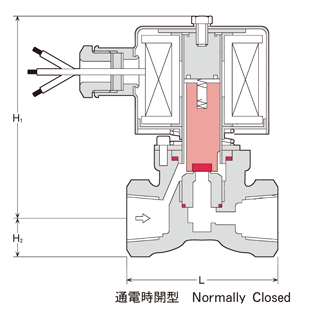

Dimensions

10A (Rc3/8)
Model No (Size) Dimensions(mm)
L H1 H2
VSPD-1540-□□ (3/8) 60 95 13
VSPD-1530-□□ (3/8)
VSPD-1520-□□ (3/8)
VSPD-2060-□□ (3/8) 115
VSPD-2050-□□ (3/8)
VSPD-2040-□□ (3/8)
VSPD-2030-□□ (3/8)
VSPD-2025-□□ (3/8)
VSPD-2020-□□ (3/8)



15A (Rc1/2)
Model No (Size) Dimensions(mm)
L H1 H2
VSPD-1540-□□ (1/2) 70 95 17
VSPD-1530-□□ (1/2)
VSPD-1520-□□ (1/2)
VSPD-2060-□□ (1/2) 115
VSPD-2050-□□ (1/2)
VSPD-2040-□□ (1/2)
VSPD-2030-□□ (1/2)
VSPD-2025-□□ (1/2)
VSPD-2020-□□ (1/2)

Other Specifications・Options

Installation A Coil Vertical plus minus at an angle of 90°
Ambient Temp. 0-50℃
Humidity RH90％ or less
Fluid Viscosity 50mm2/s(50cst)
Option Drip-proof Type , Body Materials(SUS304)
