Used by customers around the world over many years, this highly versatile, compact, direct operating solenoid valve works with water, oil, air and gas of up to 60°C. It is also available in an explosion-proof version (d2G3) and with other optional power sources.
| Fluid | Water, Oil, Air, Gas |
|---|---|
| Pressure | MAX 0.2-1MPa |
| Temperature | MAX 60C |
| Size | 4-10A |
| PowerSource |
100,110,120,200,220,240 volts AC (50/60Hz) / DC |
| Operation | Universal |
|
Model No |
Connection |
Orifice |
Pressure(MPa) (Air | Water Oil) |
CV Value |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|
| Size | Port | Type | |||||
| M3P-0712-4 | Connection - Size 1/8 |
Connection - Port 3WAY |
Connection - Type Rc |
OrificeΦ[mm]
1.2 |
Pressure(MPa) (Air | Water Oil) (0-1｜0-1) |
CV Value 0.042 |
Weight (kg) 0.4 |
| M3P-0712-8 | Connection - Size 1/4 | Connection - Port 3WAY | Connection - Type Rc |
OrificeΦ[mm]
1.2 | Pressure(MPa) (Air | Water Oil) (0-1｜0-1) | CV Value 0.042 | Weight (kg) 0.4 |
| M3P-1030-8 | Connection - Size 1/4 | Connection - Port 3WAY | Connection - Type Rc |
OrificeΦ[mm]
3.0 |
Pressure(MPa) (Air | Water Oil) (0-0.4｜0-0.2) |
CV Value 0.21 |
Weight (kg) 0.56 |
| M3P-1030-10 | Connection - Size 3/8 | Connection - Port 3WAY | Connection - Type Rc |
OrificeΦ[mm]
3.0 | Pressure(MPa) (Air | Water Oil) (0-0.4｜0-0.2) | CV Value 0.21 |
Weight (kg) 0.72 |
| M3P-1020-8 | Connection - Size 1/4 | Connection - Port 3WAY | Connection - Type Rc |
OrificeΦ[mm]
2.0 |
Pressure(MPa) (Air | Water Oil) (0-1.0｜0-0.7) |
CV Value 0.105 |
Weight (kg) 0.56 |
| M3P-1020-10 | Connection - Size 3/8 | Connection - Port 3WAY | Connection - Type Rc |
OrificeΦ[mm]
2.0 | Pressure(MPa) (Air | Water Oil) (0-1.0｜0-0.7) | CV Value 0.105 |
Weight (kg) 0.72 |

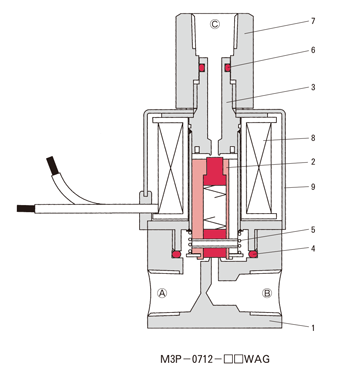

| No | Name of Parts | Material |
|---|---|---|
| 1 | Body | C3604 |
| 2 | Plunger | SUS410＋NBR |
| 3 | Packless Ass’y | SUS410+SUS304 |
| 4 | Packless Packing | NBR |
| 5 | plunger Spring | SUS304 |
| 6 | Nipple Packing | NBR |
| 7 | Nipple | S15C |
| 8 | Coil | PEW |
| 9 | Coil Bonnet | SPC+Coating |

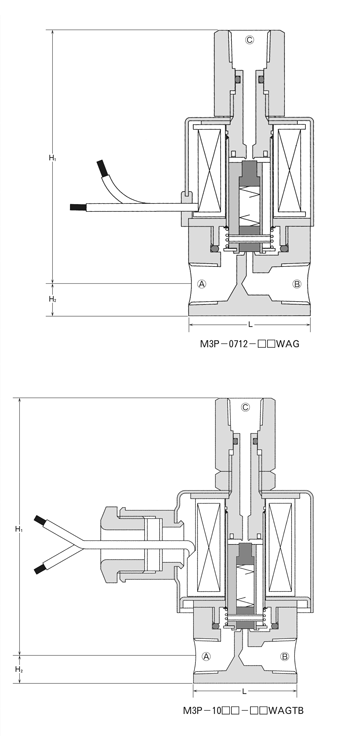

| Model Number (Size) | Dimentions (mm) | ||
|---|---|---|---|
| L | H1 | H2 | |
| M3P-0712-4 (1/8) | 38 | 80 | 10 |
| M3P-0712-8 (1/4) | |||
| M3P-1030-8 (1/4) | 97 | ||
| M3P-1030-10 (3/8) | 42 | 12 | |
| M3P-1020-8 (1/4) | 38 | 10 | |
| M3P-1020-10 (3/8) | 42 | 12 | |
| Installation | A Coil Vertical plus minus at an angle of 90 degree |
|---|---|
| Ambient Temp. | 0-50C |
| Humidity | RH90％ or less |
| Fluid Viscosity | 50mm2/s(50cst) |
| Option | Drip-proof Type、Terminal Box、Explosion-proof Type、Body Materials：SUS304、Other Power Source |
