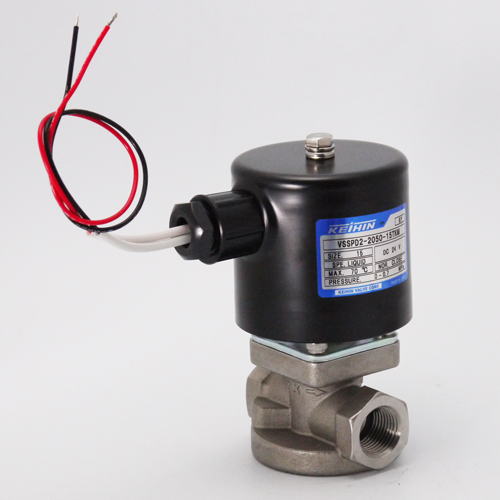

antifreeze solenoid valveVSSPD-TKM series

  • Antifreeze low to high temperature (-80°C to 70°C) solenoid valve.
  • Suitable for chiller and temperature control device.
  • RoHS directive product.

Fluid Fluorinert
Temperature -80°C to 70°C
Pressure  0~0.7Mpa
Size  15A (1/2″)
PowerSource DC24V
Operation Normally Close



全て開く

Valve Specification

Model No Connection Orifice
Φ(mm)
Pressure
(MPa)
Cv
Value
Weight
(kg)
Size Port Type

VSSPD2-2050-15TKM

1/2 2WAY Rc 5 0〜0.7 0.53 2.0

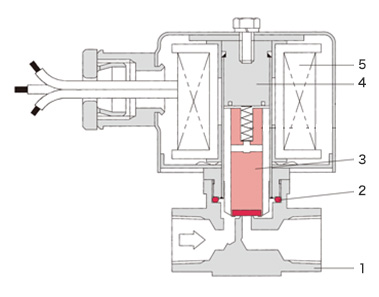

Main Parts List

No Name of Parts Material
 1  Valve Body SCS13
 2 Packless Packing TEFLON
 3 Plunger Ass’y SUS403
4 Packless Ass’y SUS304, SUS403
5 Coil  EIW

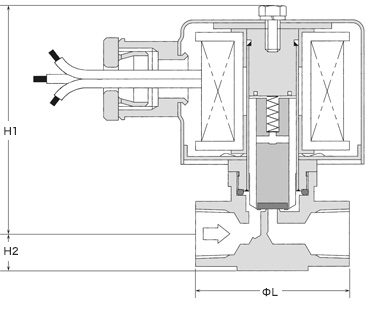

Dimensions

Model No
(Size)
Dimensions
(mm)
L H1 H2
VSSPD2-2050-15TKM  70  17  118



Other Specifications・Options

Installation A Coil Vertical plus minus at an angle of 90 degree
